Flat Trolley F-150

Flat Carrier

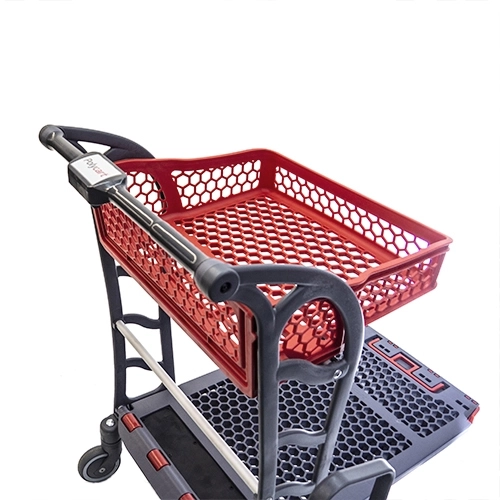

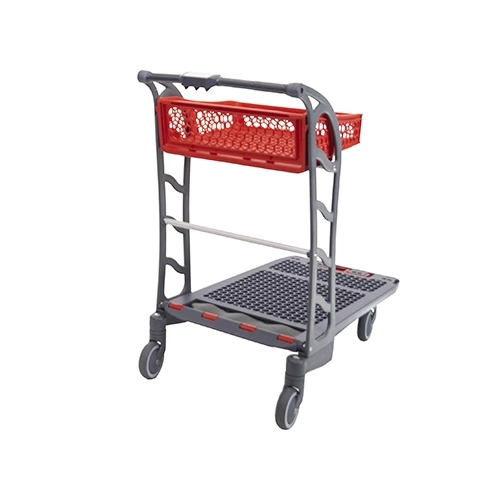

F150 supermarket platform trolley in gray and red

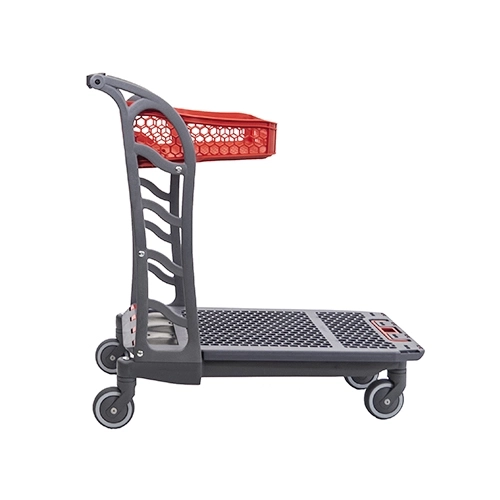

Carro plataforma de supermercado F150 vista perfil

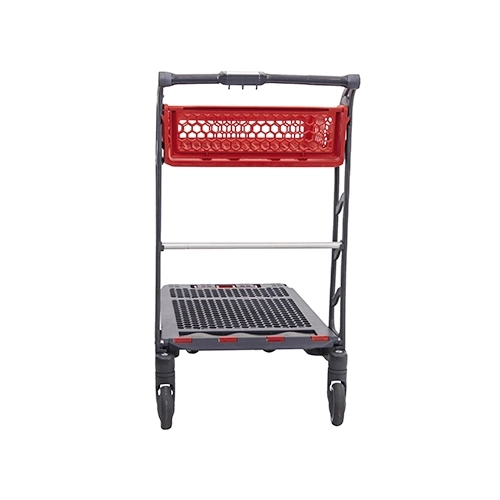

Carro plataforma de supermercado F150 vista trasera

Carro plataforma de supermercado F150 vista lateral

Plataforma de carro de supermercado F150

Plataforma de carro de supermercado F150 con tope

Sketch with measurements of the supermarket flat trolley F150

The Polycart F150 is designed for gardening and cash and carry stores, that require large load capacity carts.

It has a 35 litre basket, and a loading platform for bulky products, such as boards, windows or doors.

The F150 trolley features a lath stopper to prevent it from falling forward, a lath holder and a corner saver to facilitate and protect customers' purchases.

COLOURS

RAL 7015

RAL 3000

RAL 2004

RAL 1023

RAL 1012

RAL 6018

RAL 6024

RAL 5002

View colour options

MEASURES

Length: 1014 mm
Width: 585 mm
Height: 1052 mm
Basket volume: 35 liters
Tray volume: 150 liters
Total volume: 185 liters
Max. load: 185 kg
Nesting distance: 250 mm

Download Data Sheet

BASIC SETTINGS

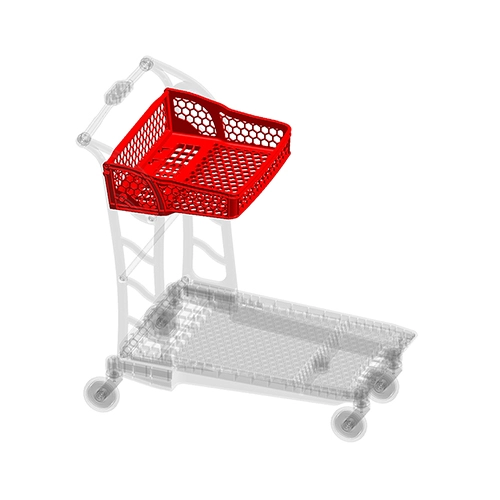

Supermarket flat trolley with colored basket

BASKET COLOUR

Posibilidad de elegir el color del cestón (ver configuraciones de color). Las ruldinas, portalistones, salvacantos, tope tablones y guía tablones se fabrican en color Rojo RAL 3000 y el resto de componentes en Gris RAL 7015.

Carro plataforma de supermercado con mango estándar

STANDARD HANDLE

It is made of ASA-PC in grey colour RAL 7015. It has great mechanical resistance, is easy to clean and very ergonomic. It also has a display (89 mm long by 48 mm wide) to place a logo.

Rubber wheel for supermarket flat trolley

WHEELS 125 MM

125 mm diameter wheel with plastic fork. Polyurethane tread. Precision swivel bearings and anti-wire hubcaps. This wheel replaces the 100 mm wheel when the trolley is fitted with a coin mechanism. This wheel diameter is also used when the trolley is equipped with fixed rear wheels (American market).

HANGER

Includes a practical series hanger, so that you can hang a bag. It is a simple component but it brings comfort to the user.

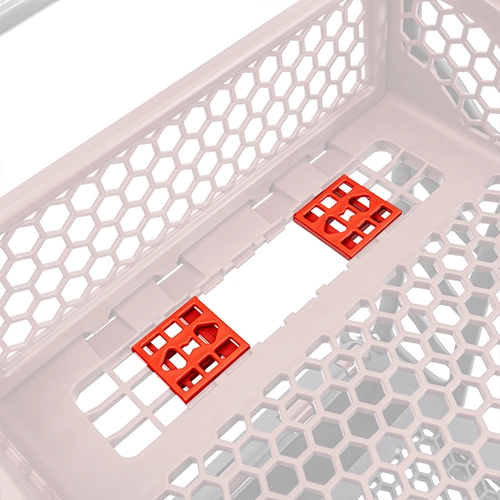

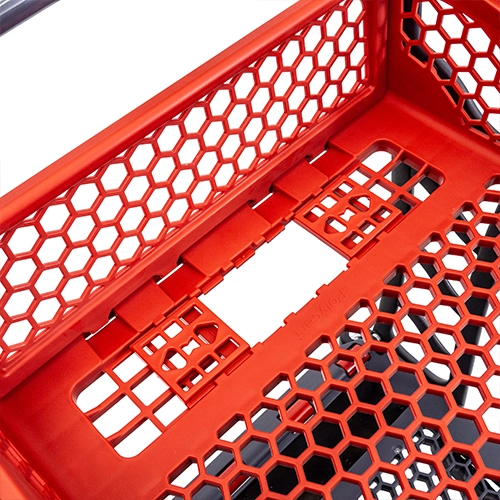

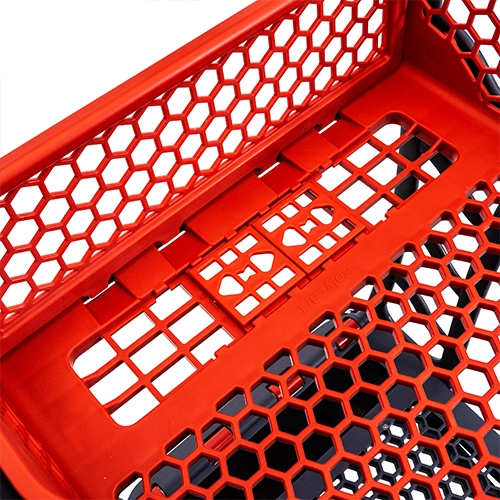

LATH HOLDER

The lath holder is an opening in the basket to guide long and thin products to the corner save guard, to gain manageability and comfort during purchase.

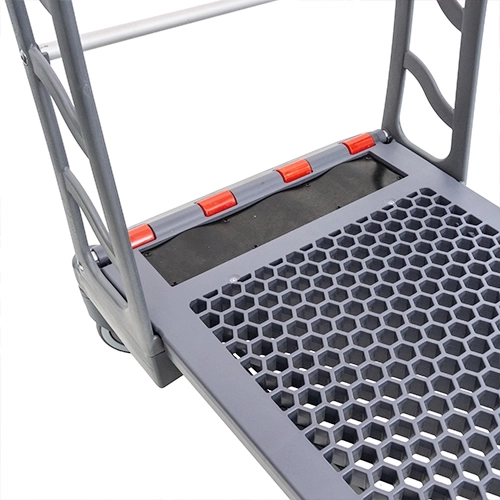

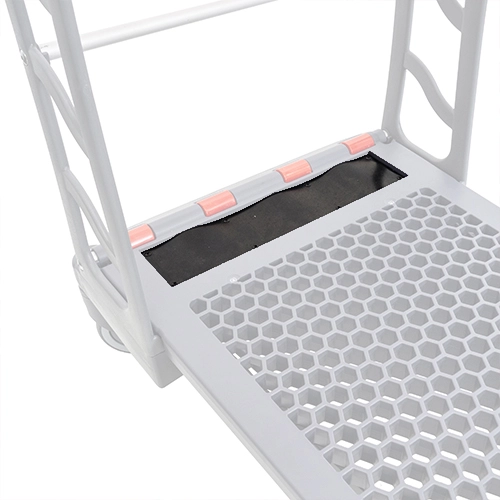

CORNER SAVER

The corner saver is an elastic film, located in the lower tray of the platform shopping cart, designed to support laths without marking them.

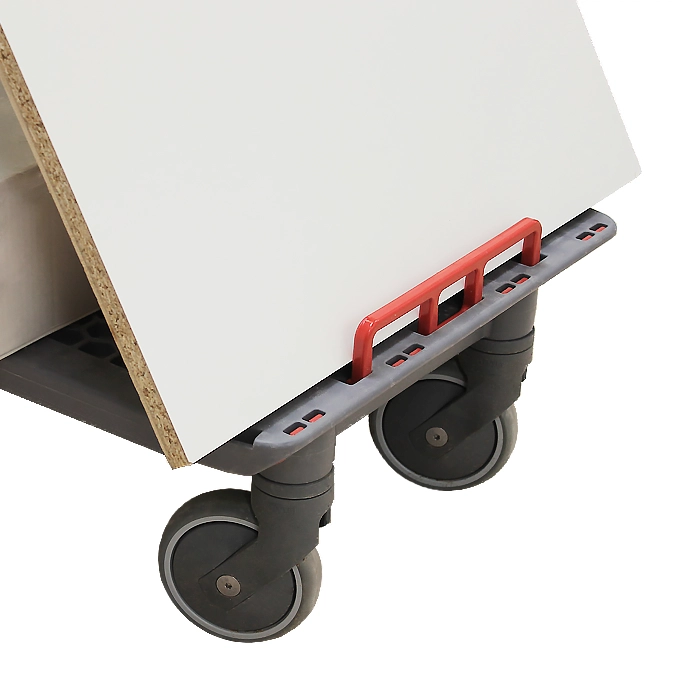

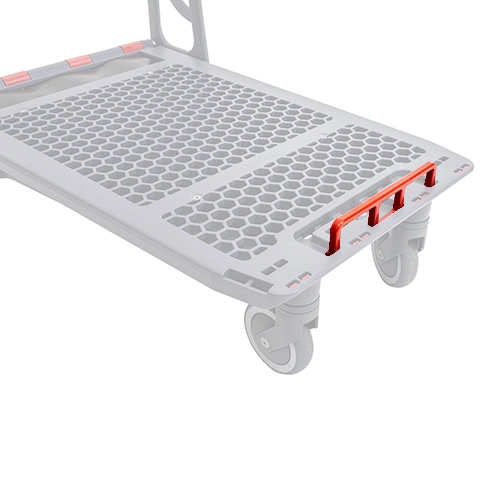

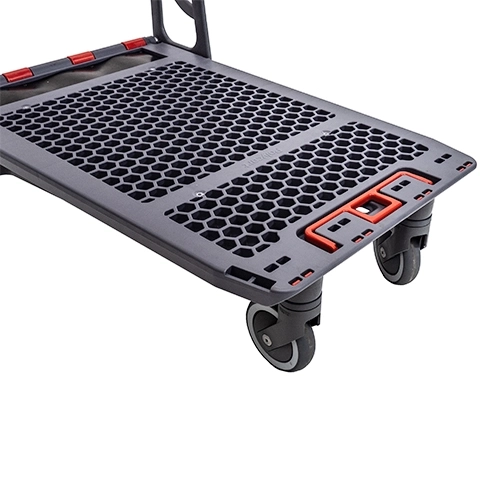

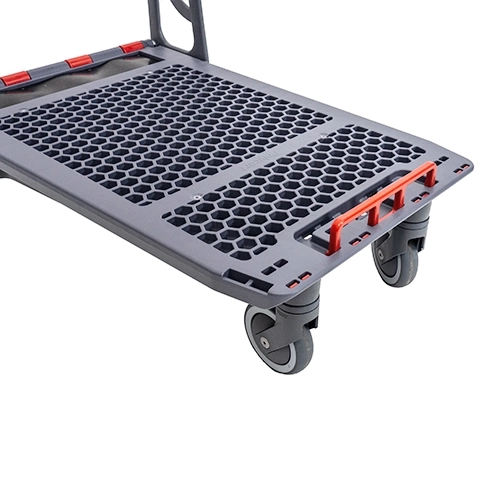

LATH STOPPER

The lath stopper prevents long objects placed on the platform from moving forward.

OPTIONAL SETTINGS

Ecogrip handle without coin purse for trolleys

ECOGRIP HANDLE WITHOUT COIN LOCK

The SYSTEC Ecogrip handle has a 293 mm long by 54 mm wide display to display the store logo or any other desirable information. It is offered by default in gray RAL 7015, but other colours can be studied for large quantities.

Ecogrip handle with coin purse for trolleys

ECOGRIP HANDLE WITH COIN LOCK

SYSTEC's Ecogrip handle with coin pocket incorporates an embedded coin pocket available for almost all circulating coins and token types. In addition, it has a display of 293 mm long by 54 mm wide to show the store logo or any other desirable information. It is offered by default in gray RAL 7015, but other colors can be studied for large quantities.

relaXt handle without coin pocket for trolleys

RELAXT HANDLE WITHOUT COIN LOCK

SYSTEC's relaXt handle offers great ergonomics. Its shape allows a more comfortable grip to facilitate maneuverability. It has the largest display area of all the handles that Polycart offers. It can be purchased in two sizes: 182 mm long by 120 mm wide and 142 mm long by 120 mm wide. It is offered by default in gray RAL 7015, but other colors can be studied for large quantities.

relaXt handle with coin pocket for trolleys

RELAXT HANDLE WITH COIN LOCK

The SYSTEC relaXt handle with coin holder adds an embedded coin holder to the handle without losing the great ergonomics that characterise it. This coin holder is available for almost all coins in circulation and token types. It has the largest display surface of all Polycart handles and is available in two sizes: 182 mm long by 120 mm wide and 142 mm long by 120 mm wide. It is available in RAL 7015 grey by default, but other colours can be considered for larger quantities.

relaXt handle with scanner holder for trolleys

RELAXT HANDLE WITH SCANNER HANDLE

The SYSTEC relaXt handle with scanner holder incorporates a scanner holder where the store scanner can be placed. We have two models: for the Motorola scanner or for the Datalogic scanner. In this model, the display measures 142 mm long by 120 mm wide. It is offered by default in gray RAL 7015, but other colors can be studied for large quantities.

RELAXT HANDLE WITH MAGNIFYING GLASS

The SYSTEC relaXt handle with magnifying glass, in addition to offering great ergonomics, comes with a built-in magnifying glass to help read small labels. The magnifying glass can be individually incorporated into any relaXt handle, so the display can be of two sizes: 182 mm long by 120 mm wide or 142 mm long by 120 mm wide. It is offered by default in gray RAL 7015, but other colors can be studied for large quantities.

RELAXT HANDLE WITH DRINK HOLDER

The SYSTEC relaXt handle with cup holder features a built-in holder for carrying cups or drinks. Its shape allows a more comfortable grip to facilitate maneuverability. In this handle model, the display measures 142 mm long by 120 mm wide. It is offered by default in gray RAL 7015, but other colors can be studied for large quantities.

RELAXT HANDLE WITH MOBILE HOLDER

The SYSTEC relaXt handle with mobile phone holder has a built-in support to carry the mobile phone, thus facilitating shopping in the store. Its shape allows a more comfortable grip to facilitate maneuverability. The display can be purchased in two sizes: 182 mm long by 120 mm wide and 142 mm long by 120 mm wide. It is offered by default in black.

125 mm ramp wheel for supermarket flat trolley

TRAVELATOR PLASTIC WHEEL

It is the ramp wheel that is installed by default. Manufactured by MECANARTE, it offers great rolling resistance and excellent anchoring for escalators through three discs and lateral brakes. Precision swivel bearings and anti-thread hubcaps. Available for carts equipped with fixed rear wheels (American market).

Side disc ramp wheel for supermarket flat trolley

LATERAL DISC RAMP WHEELS

Ramp wheels manufactured by TENTE. A floating lateral disc activates the locking mechanism of the wheels when positioned on the ramp. Zinc plated steel fork. Precision swivel bearings and rubber tread with anti-thread hubcaps. Wheel especially indicated for mechanical ramps with less usual measures. They are also suitable for environments with more abrasive floors due to their greater tread.

Multi-disc ramp wheel for supermarket flat trolley

MULTI-DISC RAMP WHEELS

Ramp wheel that offers great rolling resistance and excellent anchorage for escalators through four discs and lateral brakes. Zinc plated steel fork. Precision swivel bearings and anti-thread hubcaps.

DRINK HOLDER

The Polycart drink holder allows you to place soft drinks in cans, bottles or glasses of different sizes on the handle of the cart. Available in the standard Polycart colors: Gray RAL 7015, Red RAL 3000, Orange RAL 2004, Green RAL 6024, Yellow RAL 1023 and Blue RAL 5002. Any other color has an additional cost and is only made to order from a certain number. minimum number of units.

COIN LOCK

By default, we offer the Smartloc model from SYSTEC, the world's leading coin changer manufacturer. It is a small size model. The currency symbol is visible on the front. Also, you can have two slots for coins of different sizes. The key and chain are made of rust-proof stainless steel.

COLOUR SETTINGS
